Unisolierte Quetschkabelschuhe

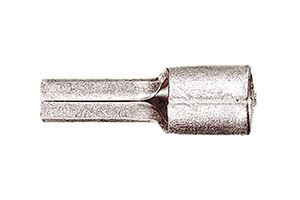

Stiftkabelschuhe
DIN 46230 und VG 88708 bis 16 qmm
und ähnliche Ausführungen
Werkstoff: E-Cu, Oberfläche: galvanisch verzinnt

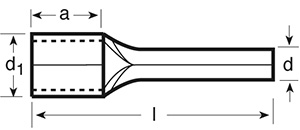

| Nenn- querschnitt | Nenngröße | Artikel- nummer | Abmessungen in mm | Verp.- Einheit | Preis/ 100 St. | |||
|---|---|---|---|---|---|---|---|---|
| qmm | l | d | d1 | a | Stück | Euro | ||
| 0,2 - 0,5 | 0,5 | 701752 | 14,5 | 1,0 | 1,2 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701752"); ?>{/source} |
| 0,5 - 1,5 | 1,0 | 701754 | 17,0 | 1,9 | 1,6 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701754");?>{/source} |
| 1,5 - 2,5 | 2,5 | 701756 | 17,0 | 1,9 | 2,3 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701756");?>{/source} |
| 2,5 - 6,0 | 6,0 | 701758 | 20,0 | 2,7 | 3,6 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701758");?>{/source} |
| 10,0 | 10,0 | 701760 | 25,0 | 4,3 | 4,5 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701760");?>{/source} |
| 16,0 | 16,0 | 701762 | 30,0 | 5,5 | 5,8 | 12 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701762");?>{/source} |
| 25,0 | 25,0 | 701764 | 33,0 | 7,0 | 7,0 | 14 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701764");?>{/source} |
| 35,0 | 35,0 | 701766 | 40,0 | 8,0 | 8,2 | 16 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701766");?>{/source} |
| 50,0 | 50,0 | 701768 | 45,0 | 9,5 | 9,5 | 19 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701768");?>{/source} |
| 70,0 | 70,0 | 701770 | 55,0 | 11,0 | 11,2 | 24 | 75 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701770");?>{/source} |
| 95,0 | 95,0 | 701772 | 55,0 | 12,5 | 13,5 | 24 | 25 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("701772");?>{/source} |
