Unisolierte Quetschkabelschuhe

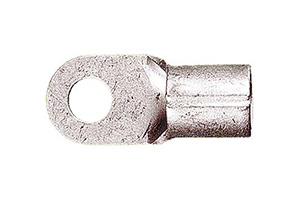

Ringkabelschuhe
DIN 46234 und ähnlich
ab 10 qmm nach VG 88710
Werkstoff: E-Cu, Oberfläche galvanisch verzinnt
| Nenn- querschnitt | Nenngröße | Artikel- nummer | Abmessungen in mm | Verp.- Einheit | Preis/ 100 St. | |||
|---|---|---|---|---|---|---|---|---|

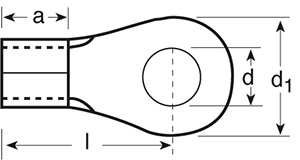

| qmm | l | d | d1 | a | Stück | Euro | ||
| 0,2 - 0,5 | 0,5 - 2,5 | 701392 | 9 | 2,2 | 5 | 5 | 100 | 10,30 € |
| 0,5 - 3,0 | 701394 | 9 | 3,2 | 5 | 5 | 100 | 11,83 € | |
| 0,5 - 3,5 | 701396 | 12 | 4,3 | 7 | 5 | 100 | 11,83 € | |
| 0,5 - 4,0 | 701398 | 12 | 4,3 | 7 | 5 | 100 | 11,83 € | |
| 0,5 - 5,0 | 701400 | 12 | 5,3 | 8 | 5 | 100 | 12,10 € | |
| 0,5 - 1,5 | 1,0 - 2,5 | 701412 | 11 | 2,8 | 6 | 5 | 100 | 8,23 € |
| 1,0 - 3,0 | 701414 | 11 | 3,2 | 6 | 5 | 100 | 8,23 € | |
| 1,0 - 3,5 | 701416 | 11 | 3,7 | 6 | 5 | 100 | 8,01 € | |
| 1,0 - 4,0 | 701418 | 12 | 4,3 | 8 | 5 | 100 | 7,47 € | |
| 1,0 - 5,0 | 701420 | 13 | 5,3 | 10 | 5 | 100 | 8,18 € | |
| 1,0 - 6,0 | 701422 | 13 | 6,5 | 10 | 5 | 100 | 10,63 € | |
| 1,0 - 8,0 | 701424 | 17 | 8,4 | 14 | 5 | 100 | 13,03 € | |
| 1,0 - 10,0 | 701426 | 17 | 10,5 | 14 | 5 | 100 | 17,93 € | |
| 1,5 - 2,5 | 2,0 - 3,0 | 701438 | 11 | 3,2 | 6 | 5 | 100 | 7,68 € |
| 2,0 - 3,5 | 701440 | 11 | 3,7 | 6 | 5 | 100 | 11,50 € | |
| 2,0 - 4,0 | 701442 | 12 | 4,3 | 8 | 5 | 100 | 7,41 € | |
| 2,5 - 5,0 | 701444 | 14 | 5,3 | 10 | 5 | 100 | 8,18 € | |
| 2,5 - 6,0 | 701446 | 16 | 6,5 | 11 | 5 | 100 | 10,19 € | |
| 2,5 - 8,0 | 701448 | 17 | 8,4 | 14 | 5 | 100 | 11,94 € | |
| 2,5 - 10,0 | 701450 | 17 | 10,5 | 15 | 5 | 100 | 17,71 € | |
| 2,5 - 12,0 | 701452 | 20 | 13,0 | 18 | 5 | 100 | 20,76 € | |
| 2,5 - 6,0 | 6,0 - 4,0 | 701466 | 14 | 4,3 | 8 | 6 | 100 | 11,83 € |
| 6,0 - 5,0 | 701468 | 15 | 5,3 | 10 | 6 | 100 | 12,64 € | |
| 6,0 - 6,0 | 701470 | 16 | 6,5 | 11 | 6 | 100 | 13,52 € | |
| 6,0 - 8,0 | 701472 | 19 | 8,4 | 14 | 6 | 100 | 16,08 € | |
| 6,0 - 10,0 | 701474 | 21 | 10,5 | 18 | 6 | 100 | 19,73 € | |
| 6,0 - 12,0 | 701476 | 21 | 13,0 | 18 | 6 | 100 | 21,04 € | |
| 6,0 - 14,0 | 701478 | 23 | 15,0 | 22 | 6 | 100 | 39,24 € | |
| 10,0 | 10,0 - 5,0 | 701402 | 16 | 5,3 | 10 | 8 | 100 | 18,15 € |
| 10,0 - 6,0 | 701404 | 17 | 6,5 | 11 | 8 | 100 | 19,73 € | |
| 10,0 - 8,0 | 701406 | 20 | 8,4 | 14 | 8 | 100 | 20,17 € | |
| 10,0 - 10,0 | 701408 | 21 | 10,5 | 18 | 8 | 100 | 23,60 € | |
| 10,0 - 12,0 | 701410 | 23 | 13,0 | 22 | 8 | 100 | 37,33 € | |
| 16,0 | 16,0 - 5,0 | 701428 | 20 | 5,3 | 11 | 10 | 100 | 31,12 € |
| 16,0 - 6,0 | 701430 | 20 | 6,5 | 11 | 10 | 100 | 31,12 € | |
| 16,0 - 8,0 | 701432 | 22 | 8,4 | 14 | 10 | 100 | 36,19 € | |
| 16,0 - 10,0 | 701434 | 24 | 10,5 | 18 | 10 | 100 | 39,35 € | |
| 16,0 - 12,0 | 701436 | 26 | 13,0 | 22 | 10 | 100 | 49,87 € | |
| 25,0 | 25,0 - 5 | 701454 | 25 | 5,3 | 12 | 11 | 100 | 50,30 € |
| 25,0 - 6 | 701456 | 25 | 6,5 | 12 | 11 | 100 | 50,30 € | |
| 25,0 - 8 | 701458 | 25 | 8,4 | 16 | 11 | 100 | 59,73 € | |
| 25,0 - 10 | 701460 | 26 | 10,5 | 18 | 11 | 100 | 68,51 € | |
| 25,0 - 12 | 701462 | 31 | 13,0 | 22 | 11 | 100 | 86,16 € | |
| 25,0 - 16 | 701464 | 35 | 17,0 | 28 | 11 | 100 | 102,35 € | |
| 35,0 | 35,0 - 6 | 701480 | 26 | 6,5 | 15 | 12 | 100 | 71,18 € |
| 35,0 - 8 | 701482 | 26 | 8,4 | 16 | 12 | 100 | 71,18 € | |
| 35,0 - 10 | 701484 | 27 | 10,5 | 18 | 12 | 100 | 91,56 € | |
| 35,0 - 12 | 701486 | 31 | 13,0 | 22 | 12 | 100 | 91,56 € | |
| 35,0 - 16 | 701488 | 36 | 17,0 | 28 | 12 | 100 | 102,57 € | |
| 50,0 | 50,0 - 6 | 701490 | 34 | 6,5 | 18 | 16 | 100 | 103,60 € |
| 50,0 - 8 | 701492 | 34 | 8,4 | 18 | 16 | 100 | 103,60 € | |
| 50,0 - 10 | 701494 | 34 | 10,5 | 18 | 16 | 100 | 103,60 € | |
| 50,0 - 12 | 701496 | 36 | 13,0 | 22 | 16 | 100 | 121,64 € | |
| 50,0 - 16 | 701498 | 40 | 17,0 | 28 | 16 | 100 | 167,59 € | |
| 70,0 | 70,0 - 6 | 701500 | 38 | 6,5 | 22 | 18 | 100 | 158,54 € |
| 70,0 - 8 | 701502 | 38 | 8,4 | 22 | 18 | 100 | 147,86 € | |
| 70,0 - 10 | 701504 | 38 | 10,5 | 22 | 18 | 100 | 147,86 € | |
| 70,0 - 12 | 701506 | 38 | 13,0 | 22 | 18 | 100 | 147,86 € | |
| 70,0 - 16 | 701508 | 42 | 17,0 | 28 | 18 | 100 | 173,04 € | |
| 95,0 | 95,0 - 8 | 701510 | 42 | 8,4 | 24 | 20 | 100 | 270,65 € |
| 95,0 - 10 | 701512 | 42 | 10,5 | 24 | 20 | 100 | 270,65 € | |
| 95,0 - 12 | 701514 | 42 | 13,0 | 24 | 20 | 100 | 225,09 € | |
| 95,0 - 16 | 701516 | 44 | 17,0 | 28 | 20 | 100 | 292,72 € | |
| 120,0 | 120,0 - 8 | 701518 | 44 | 8,4 | 24 | 22 | 50 | 356,16 € |
| 120,0 - 10 | 701520 | 44 | 10,5 | 24 | 22 | 50 | 341,66 € | |
| 120,0 - 12 | 701522 | 44 | 13,0 | 24 | 22 | 50 | 341,66 € | |
| 185,0 | 185,0 - 16 | 701536 | 50 | 17,0 | 36 | 28 | 20 | 854,78 € |
| 240,0 | 240,0 - 10 | 701538 | 56 | 10,5 | 38 | 32 | 15 | 1.232,52 € |
| 240,0 - 12 | 701540 | 56 | 13,0 | 38 | 32 | 15 | 1.092,18 € | |
