Rohrkabelschuhe

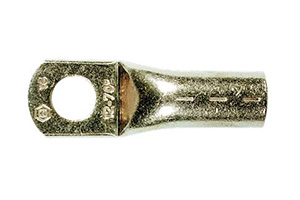

Presskabelschuhe
DIN 46235, ohne Sichtloch
Werkstoff: E-Cu Rohr
Oberfläche: galvanisch verzinnt, wahlweise blank
*Nenngröße nicht genormt

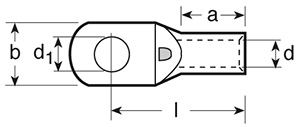

| Nenn- querschnitt | Nenngröße | Artikel- nummer | Kennziffer | Abmessungen in mm | Gewicht 100 Stück | Verp.- Einheit | Preis/ 100 St. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| qmm | l | d | d1 | a | b | ~ kg | Stück | Euro | |||
| 6,0 | 5 | 701667 | 5 | 24 | 3,8 | 5,3 | 10 | 8,5 | 0,310 | 100 | 64,47 € |
| 6 | 701668 | 5 | 24 | 3,8 | 6,4 | 10 | 8,5 | 0,300 | 100 | 64,47 € | |
| 10,0 | 6 | 701671 | 6 | 27 | 4,5 | 6,4 | 10 | 9,0 | 0,360 | 100 | 60,91 € |
| 8* | 701672 | 6 | 27 | 4,5 | 8,4 | 10 | 13,0 | 0,390 | 100 | 56,56 € | |
| 16,0 | 6 | 701673 | 8 | 36 | 5,5 | 6,4 | 20 | 13,0 | 1,180 | 100 | 81,64 € |
| 8 | 701674 | 8 | 36 | 5,5 | 8,4 | 20 | 13,0 | 1,180 | 100 | 81,64 € | |
| 10 | 701675 | 8 | 36 | 5,5 | 10,5 | 20 | 17,0 | 1,200 | 100 | 81,64 € | |
| 12* | 701676 | 8 | 36 | 5,5 | 13,0 | 20 | 18,0 | 1,170 | 100 | 104,64 € | |
| 25,0 | 6 | 701677 | 10 | 38 | 7,0 | 6,4 | 20 | 14,0 | 1,490 | 100 | 115,20 € |
| 8 | 701678 | 10 | 38 | 7,0 | 8,4 | 20 | 16,0 | 1,570 | 100 | 113,00 € | |
| 10 | 701679 | 10 | 38 | 7,0 | 10,5 | 20 | 17,0 | 1,580 | 100 | 115,20 € | |
| 12 | 701680 | 10 | 38 | 7,0 | 13,0 | 20 | 19,0 | 1,540 | 100 | 118,82 € | |
| 35,0 | 6* | 701681 | 12 | 42 | 8,2 | 6,4 | 20 | 17,0 | 2,775 | 100 | 197,52 € |
| 8 | 701682 | 12 | 42 | 8,2 | 8,4 | 20 | 17,0 | 2,750 | 100 | 197,52 € | |
| 10 | 701683 | 12 | 42 | 8,2 | 10,5 | 20 | 19,0 | 2,850 | 100 | 197,52 € | |
| 12 | 701684 | 12 | 42 | 8,2 | 13,0 | 20 | 21,0 | 2,800 | 100 | 197,52 € | |
| 50,0 | 8 | 701686 | 14 | 52 | 10,0 | 8,4 | 28 | 20,0 | 4,500 | 100 | 304,70 € |
| 10 | 701687 | 14 | 52 | 10,0 | 10,5 | 28 | 22,0 | 4,500 | 100 | 304,70 € | |
| 12 | 701688 | 14 | 52 | 10,0 | 13,0 | 28 | 24,0 | 4,450 | 100 | 304,70 € | |
| 16 | 701690 | 14 | 52 | 10,0 | 17,0 | 28 | 28,0 | 4,400 | 100 | 344,76 € | |
| 70,0 | 8 | 701691 | 16 | 55 | 11,5 | 8,4 | 28 | 24,0 | 6,050 | 50 | 434,43 € |
| 10 | 701692 | 16 | 55 | 11,5 | 10,5 | 28 | 24,0 | 6,150 | 50 | 434,43 € | |
| 12 | 701693 | 16 | 55 | 11,5 | 13,0 | 28 | 24,0 | 5,900 | 50 | 434,43 € | |
| 16 | 701695 | 16 | 55 | 11,5 | 17,0 | 28 | 30,0 | 5,900 | 50 | 442,45 € | |
| 95,0 | 8* | 701696 | 18 | 65 | 13,5 | 8,4 | 35 | 28,0 | 9,250 | 50 | 552,51 € |
| 10 | 701697 | 18 | 65 | 13,5 | 10,5 | 35 | 28,0 | 9,150 | 50 | 552,51 € | |
| 12 | 701698 | 18 | 65 | 13,5 | 13,0 | 35 | 28,0 | 9,000 | 50 | 552,51 € | |
| 16 | 701700 | 18 | 65 | 13,5 | 17,0 | 35 | 32,0 | 9,000 | 50 | 552,51 € | |
| 120,0 | 10 | 701703 | 20 | 70 | 15,5 | 10,5 | 35 | 32,0 | 11,400 | 50 | 694,61 € |
| 12 | 701704 | 20 | 70 | 15,5 | 13,0 | 35 | 32,0 | 11,400 | 50 | 694,61 € | |
| 16 | 701706 | 20 | 70 | 15,5 | 17,0 | 35 | 32,0 | 11,300 | 50 | 694,61 € | |
| 20 | 701707 | 20 | 70 | 15,5 | 21,0 | 35 | 38,0 | 11,100 | 50 | 694,61 € | |
| 150,0 | 10 | 701708 | 22 | 78 | 17,0 | 10,5 | 35 | 34,0 | 16,400 | 25 | 986,89 € |
| 12 | 701709 | 22 | 78 | 17,0 | 13,0 | 35 | 34,0 | 16,300 | 25 | 986,89 € | |
| 16 | 701711 | 22 | 78 | 17,0 | 17,0 | 35 | 34,0 | 16,200 | 25 | 986,89 € | |
| 20 | 701712 | 22 | 78 | 17,0 | 21,0 | 35 | 40,0 | 15,900 | 25 | 986,89 € | |
| 185,0 | 10 | 701713 | 25 | 82 | 19,0 | 10,5 | 40 | 37,0 | 18,700 | 25 | 1.184,41 € |
| 12 | 701714 | 25 | 82 | 19,0 | 13,0 | 40 | 37,0 | 18,900 | 25 | 1.184,41 € | |
| 16 | 701716 | 25 | 82 | 19,0 | 17,0 | 40 | 37,0 | 18,900 | 25 | 1.184,41 € | |
| 20 | 701717 | 25 | 82 | 19,0 | 21,0 | 40 | 40,0 | 18,000 | 25 | 1.184,41 € | |
| 240,0 | 16 | 701720 | 28 | 92 | 21,5 | 17,0 | 40 | 42,0 | 27,300 | 25 | 1.579,46 € |
| 20 | 701721 | 28 | 92 | 21,5 | 21,0 | 40 | 45,0 | 27,000 | 25 | 1.579,46 € | |
| 300,0 | 16 | 701723 | 32 | 100 | 24,5 | 17,0 | 50 | 48,0 | 33,500 | 20 | 2.249,89 € |
| 20 | 701724 | 32 | 100 | 24,5 | 21,0 | 50 | 48,0 | 33,500 | 20 | 2.053,21 € | |
| 400,0 | 16 | 701726 | 38 | 115 | 27,5 | 17,0 | 70 | 55,0 | 69,400 | 10 | 3.948,22 € |
| 20 | 701727 | 38 | 115 | 27,5 | 21,0 | 70 | 55,0 | 65,400 | 10 | 3.948,22 € | |
| 500,0 | 16* | 701728 | 42 | 125 | 31,0 | 17,0 | 70 | 60,0 | 83,000 | 10 | 4.895,73 € |
| 20 | 701729 | 42 | 125 | 31,0 | 21,0 | 70 | 60,0 | 82,000 | 10 | 4.895,73 € | |
| 625,0 | 16* | 701730 | 44 | 135 | 34,5 | 17,0 | 80 | 60,0 | 79,600 | 10 | 5.053,13 € |
| 20 | 701731 | 44 | 135 | 34,5 | 21,0 | 80 | 60,0 | 78,700 | 10 | 5.053,13 € | |
| 1000,0 | 20 | 701702 | 58 | 165 | 44,0 | 21,0 | 100 | 85,0 | 193,100 | 10 | 11.825,90 € |
