Rohrkabelschuhe

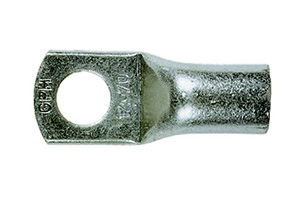

Kerbkabelschuhe
Normalausführung ohne Sichtloch
Normalausführung
Werkstoff: E-Cu Rohr
Oberfläche: galvanisch verzinnt

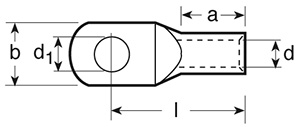

| Nenn- querschnitt | Nenngröße | Artikel- nummer | Abmessungen in mm | Gewicht 100 Stück | Verp.- Einheit | Preis/ 100 St. | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| qmm | l | d | d1 | a | b | ~ kg | Stück | Euro | ||
| 6,0 | 6 | 701311 | 21 | 3,5 | 6,5 | 9 | 12 | 0,500 | 100 | 58,82 € |
| 8 | 701312 | 23 | 3,5 | 8,5 | 9 | 15 | 0,570 | 100 | 64,24 € | |
| 10 | 701313 | 25 | 3,5 | 10,5 | 9 | 17 | 0,610 | 100 | 91,76 € | |
| 12 | 701314 | 28 | 3,5 | 13,0 | 9 | 9 | 0,650 | 100 | 75,54 € | |
| 10,0 | 5 | 701315 | 22 | 4,5 | 5,5 | 10 | 12 | 0,520 | 100 | 51,70 € |
| 6 | 701316 | 22 | 4,5 | 6,5 | 10 | 12 | 0,510 | 100 | 51,70 € | |
| 8 | 701317 | 25 | 4,5 | 8,5 | 10 | 15 | 0,600 | 100 | 53,73 € | |
| 10 | 701318 | 27 | 4,5 | 10,5 | 10 | 17 | 0,640 | 100 | 64,24 € | |
| 12 | 701319 | 29 | 4,5 | 13,0 | 10 | 19 | 0,660 | 100 | 109,55 € | |
| 16,0 | 5 | 701320 | 26 | 5,5 | 5,5 | 13 | 12 | 0,860 | 100 | 56,56 € |
| 6 | 701321 | 27 | 5,5 | 6,5 | 13 | 12 | 0,890 | 100 | 56,56 € | |
| 8 | 701322 | 29 | 5,5 | 8,5 | 13 | 15 | 0,950 | 100 | 61,64 € | |
| 10 | 701323 | 31 | 5,5 | 10,5 | 13 | 17 | 1,020 | 100 | 64,35 € | |
| 12 | 701324 | 33 | 5,5 | 13,0 | 13 | 19 | 1,100 | 100 | 67,57 € | |
| 25,0 | 5 | 701325 | 30 | 7,0 | 5,5 | 15 | 14 | 1,230 | 100 | 194,87 € |
| 6 | 701326 | 30 | 7,0 | 6,5 | 15 | 14 | 1,200 | 100 | 74,35 € | |
| 8 | 701327 | 32 | 7,0 | 8,5 | 15 | 16 | 1,320 | 100 | 72,55 € | |
| 10 | 701328 | 34 | 7,0 | 10,5 | 15 | 18 | 1,420 | 100 | 79,50 € | |
| 12 | 701329 | 35 | 7,0 | 13,0 | 15 | 19 | 1,400 | 100 | 88,93 € | |
| 35,0 | 6 | 701332 | 32 | 8,5 | 6,5 | 17 | 17 | 1,850 | 100 | 96,95 € |
| 8 | 701333 | 34 | 8,5 | 8,5 | 17 | 17 | 2,000 | 100 | 96,95 € | |
| 10 | 701334 | 37 | 8,5 | 10,5 | 17 | 19 | 2,150 | 100 | 102,04 € | |
| 12 | 701335 | 38 | 8,5 | 13,0 | 17 | 21 | 2,130 | 100 | 111,53 € | |
| 16 | 701337 | 42 | 8,5 | 17,0 | 17 | 26 | 2,300 | 100 | 269,84 € | |
| 50,0 | 6 | 701338 | 37 | 10,0 | 6,5 | 19 | 20 | 3,000 | 100 | 150,18 € |
| 8 | 701339 | 37 | 10,0 | 8,5 | 19 | 20 | 2,900 | 100 | 150,18 € | |
| 10 | 701340 | 39 | 10,0 | 10,5 | 19 | 20 | 3,100 | 100 | 150,18 € | |
| 12 | 701341 | 43 | 10,0 | 13,0 | 19 | 23 | 3,250 | 100 | 159,67 € | |
| 16 | 701343 | 46 | 10,0 | 17,0 | 19 | 28 | 3,450 | 100 | 230,92 € | |
| 70,0 | 6 | 701345 | 43 | 12,0 | 6,5 | 21 | 20 | 4,600 | 100 | 418,21 € |
| 8 | 701346 | 43 | 12,0 | 8,5 | 21 | 23 | 4,500 | 100 | 203,40 € | |
| 10 | 701347 | 44 | 12,0 | 10,5 | 21 | 23 | 4,600 | 100 | 203,40 € | |
| 12 | 701348 | 46 | 12,0 | 13,0 | 21 | 23 | 4,660 | 100 | 212,84 € | |
| 16 | 701350 | 50 | 12,0 | 17,0 | 21 | 28 | 5,100 | 100 | 334,03 € | |
| 20 | 701351 | 53 | 12,0 | 21,0 | 21 | 30 | 5,150 | 100 | 367,59 € | |
| 95,0 | 8 | 701352 | 48 | 13,5 | 8,5 | 25 | 26 | 5,700 | 50 | 229,62 € |
| 10 | 701353 | 48 | 13,5 | 10,5 | 25 | 26 | 5,550 | 50 | 225,04 € | |
| 12 | 701354 | 49 | 13,5 | 13,0 | 25 | 26 | 5,600 | 50 | 231,65 € | |
| 16 | 701356 | 54 | 13,5 | 17,0 | 25 | 28 | 6,000 | 50 | 377,76 € | |
| 20 | 701357 | 60 | 13,5 | 21,0 | 25 | 36 | 6,900 | 50 | 408,66 € | |
| 120,0 | 8 | 701358 | 51 | 15,0 | 8,5 | 26 | 28 | 6,800 | 50 | 313,41 € |
| 10 | 701359 | 51 | 15,0 | 10,5 | 26 | 28 | 6,650 | 50 | 309,79 € | |
| 12 | 701360 | 51 | 15,0 | 13,0 | 26 | 28 | 6,450 | 50 | 309,79 € | |
| 16 | 701362 | 54 | 15,0 | 17,0 | 26 | 30 | 6,600 | 50 | 319,34 € | |
| 20 | 701363 | 63 | 15,0 | 21,0 | 26 | 36 | 7,900 | 50 | 532,51 € | |
| 150,0 | 8 | 701364 | 56 | 16,5 | 8,5 | 30 | 31 | 8,050 | 50 | 497,82 € |
| 10 | 701365 | 56 | 16,5 | 10,5 | 30 | 31 | 7,900 | 50 | 497,82 € | |
| 12 | 701366 | 57 | 16,5 | 13,0 | 30 | 31 | 7,850 | 50 | 479,63 € | |
| 16 | 701368 | 58 | 16,5 | 17,0 | 30 | 31 | 7,70 | 50 | 504,38 € | |
| 20 | 701369 | 66 | 16,5 | 21,0 | 30 | 36 | 9,000 | 50 | 611,95 € | |
| 185,0 | 10 | 701370 | 65 | 19,0 | 10,5 | 30 | 35 | 12,000 | 50 | 546,64 € |
| 12 | 701371 | 65 | 19,0 | 13,0 | 30 | 35 | 11,800 | 50 | 546,64 € | |
| 16 | 701373 | 65 | 19,0 | 17,0 | 30 | 35 | 11,400 | 50 | 546,64 € | |
| 20 | 701374 | 69 | 19,0 | 21,0 | 30 | 39 | 12,000 | 50 | 724,67 € | |
| 240,0 | 10 | 701375 | 72 | 21,0 | 10,5 | 35 | 39 | 15,000 | 50 | 976,09 € |
| 12 | 701376 | 72 | 21,0 | 13,0 | 35 | 39 | 14,800 | 50 | 752,92 € | |
| 16 | 701378 | 72 | 21,0 | 17,0 | 35 | 39 | 14,400 | 50 | 752,92 € | |
| 20 | 701379 | 72 | 21,0 | 21,0 | 35 | 39 | 14,000 | 50 | 1.071,01 € | |
| 300,0 | 12 | 701380 | 87 | 23,5 | 13,0 | 44 | 43 | 23,900 | 25 | 1.181,87 € |
| 16 | 701382 | 87 | 23,5 | 17,0 | 44 | 43 | 23,100 | 25 | 1.095,82 € | |
| 20 | 701383 | 87 | 23,5 | 21,0 | 44 | 43 | 22,800 | 25 | 953,38 € | |
| 400,0 | 12 | 701384 | 90 | 27,0 | 13,0 | 44 | 49 | 33,500 | 20 | 1.506,57 € |
| 16 | 701386 | 90 | 27,0 | 17,0 | 44 | 49 | 32,500 | 20 | 1.506,57 € | |
| 20 | 701387 | 90 | 27,0 | 21,0 | 44 | 49 | 31,500 | 20 | 1.591,10 € | |
| 500,0 | 16 | 701388 | 124 | 31,0 | 17,0 | 70 | 55 | 45,200 | 20 | 2.623,86 € |
| 20 | 701389 | 124 | 31,0 | 21,0 | 70 | 55 | 46,900 | 20 | 2.623,86 € | |
