Isolierte Quetschkabelschuhe

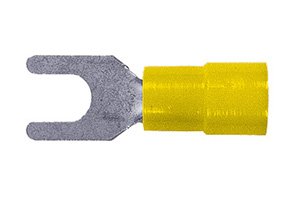

Gabelkabelschuhe
Werkstoff: Kupfer, verzinnt
gelöteter Hals, RoHs-konform
Isolierhülse Polyamid, halogenfrei
Easy-Entry Kabeleinführung, UL-Zulassung
* Normalausführung
| Nennquerschnitt | Nenngröße | Artikel- nummer | Farbe | Abmessungen in mm | Verp.- Einheit | Preis Euro | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| qmm | l | d | d1 | d2 | a | Stück | ||||||
| 0,1 - 0,5 | 0,5 - 2,0 | 700655 | 16 | 2,2 | 5,0 | 3,2 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700655"); ?>{/source} |
|||
| 0,5 - 3,0 | 700657 | 16 | 3,2 | 5,0 | 3,2 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700657");?>{/source} |
||||
| 0,5 - 3,5 | 700659 | 16 | 3,7 | 6,0 | 3,2 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700659");?>{/source} |
||||
| 0,5 - 4,0 | 700661 | 17 | 4,3 | 6,0 | 3,2 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700661");?>{/source} |
||||
| 0,5 - 1,5 | 1,0 - 3,0 | 700665 | 16 | 3,2 | 5,8 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700665");?>{/source} |
|||
| 1,0 - 3,5 | 700667 | 16 | 3,7 | 5,8 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700667");?>{/source} |
||||
| 1,0 - 4,0 | 700671 | 17 | 4,3 | 6,4 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700671");?>{/source} |
||||
| 1,0 - 4,0 | 700669* | 17 | 4,3 | 7,0 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700669");?>{/source} |
||||
| 1,0 - 4,0 | 700673 | 17 | 4,3 | 8,1 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700673");?>{/source} |
||||
| 1,0 - 5,0 | 700675 | 18 | 5,3 | 9,6 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700675");?>{/source} |
||||
| 1,0 - 6,0 | 700677 | 20 | 6,4 | 11,0 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700677");?>{/source} |
||||
| 1,0 - 8,0 | 700679 | 21 | 8,4 | 14,0 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700679");?>{/source} |
||||
| 1,0 - 10,0 | 700681 | 26 | 10,5 | 15,0 | 4,1 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700681");?>{/source} |
||||
| 1,5 - 2,5 | 2,5 - 3,0 | 700683 | 17 | 3,2 | 5,9 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700683");?>{/source} |
|||
| 2,5 - 3,5 | 700685 | 19 | 3,7 | 6,4 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700685");?>{/source} |
||||
| 2,5 - 4,0 | 700689 | 19 | 4,3 | 6,4 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700689");?>{/source} |
||||
| 2,5 - 4,0 | 700687* | 19 | 4,3 | 7,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700687");?>{/source} |
||||
| 2,5 - 4,0 | 700691 | 19 | 4,3 | 10,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700691");?>{/source} |
||||
| 2,5 - 5,0 | 700693 | 20 | 5,3 | 10,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700693");?>{/source} |
||||
| 2,5 - 6,0 | 700695 | 23 | 6,4 | 12,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700695");?>{/source} |
||||
| 2,5 - 8,0 | 700697 | 25 | 8,4 | 14,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700697");?>{/source} |
||||
| 2,5 - 10,0 | 700699 | 28 | 10,5 | 15,0 | 4,5 | 5 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700699");?>{/source} |
||||
| 2,5 - 6,0 | 6,0 - 3,5 | 700701 | 20 | 3,7 | 9,0 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700701");?>{/source} |
|||
| 6,0 - 4,0 | 700703 | 20 | 4,3 | 9,0 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700703");?>{/source} |
||||
| 6,0 - 5,0 | 700705 | 20 | 5,3 | 9,0 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700705");?>{/source} |
||||
| 6,0 - 6,0 | 700707 | 27 | 6,5 | 12,5 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700707");?>{/source} |
||||
| 6,0 - 8,0 | 700709 | 31 | 8,4 | 15,0 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700709");?>{/source} |
||||
| 6,0 - 10,0 | 700711 | 34 | 10,5 | 19,2 | 6,8 | 6 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700711");?>{/source} |
||||
