Isolierte Quetschkabelschuhe

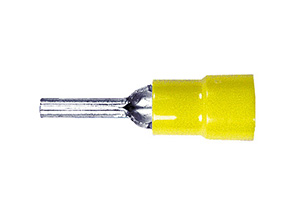

Stiftkabelschuhe
Werkstoff: Kupfer, verzinnt
gelöteter Hals, RoHs-konform
Isolierhülse Polyamid, halogenfrei
Easy-Entry Kabeleinführung
| Nennquerschnitt | Nenngröße | Artikel- nummer | Farbe | Abmessungen in mm | Verp.- Einheit | Preis Euro | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| qmm | l | d | d1 | a | Stück | ||||||
| 0,1 - 0,5 | 0,5 | 700713 | 14,5 | 1,0 | 3,2 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700713"); ?>{/source} |
|||
| 0,5 - 10,5 | 1,0 | 700715 | 20,0 | 1,9 | 4,1 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700715");?>{/source} |
|||
| 1,0 | 700717 | 22,0 | 1,9 | 4,1 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700717");?>{/source} |
||||
| 1,0 | 700719 | 30,0 | 1,9 | 4,1 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700719");?>{/source} |
||||
| 1,5 - 2,5 | 2,5 | 700721 | 20,0 | 1,9 | 4,5 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700721");?>{/source} |
|||
| 2,5 | 700723 | 23,0 | 1,9 | 4,5 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700723");?>{/source} |
||||
| 2,5 | 700725 | 30,0 | 1,9 | 4,5 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700725");?>{/source} |
||||
| 2,5 - 6,0 | 6,0 | 700727 | 27,0 | 2,8 | 6,8 | 10 | 100 | {source}<?php require_once('tmp/config/db.php'); echo getPrice("700727");?>{/source} |
|||
